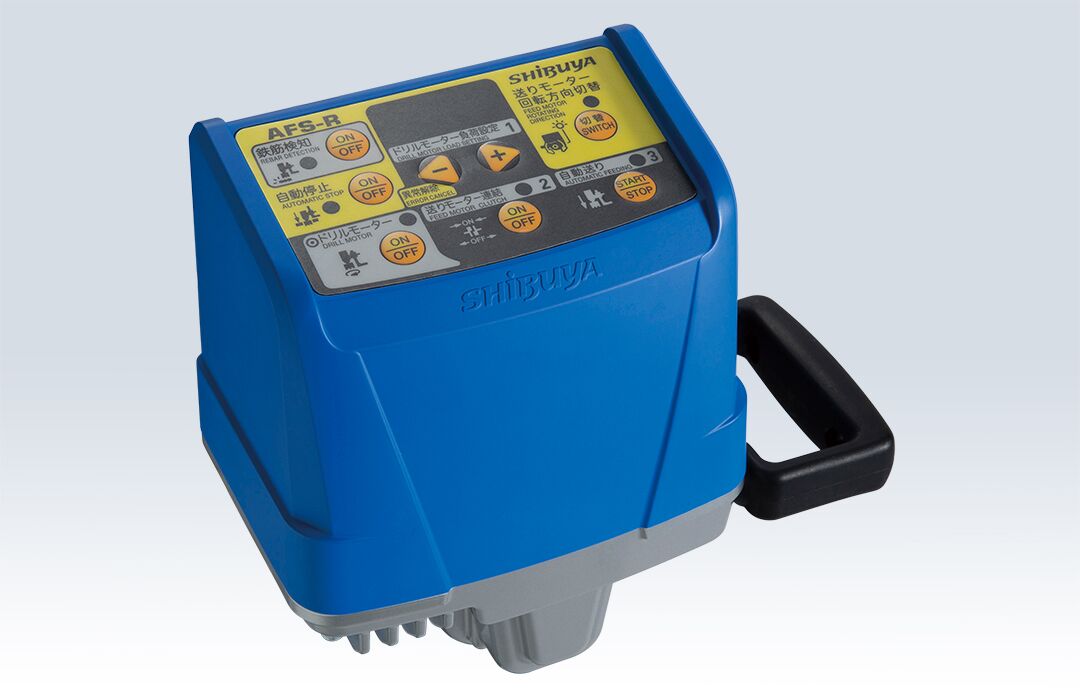

Shibuya Auto Feed Unit (AFS-R)

Shibuya Auto Feed Unit (AFS-R) - Image 3

Shibuya Auto Feed Unit (AFS-R) - Image 4

Key Features

Automated Drilling Feed: Automatically feeds the drill motor, optimizing drilling efficiency and reducing operator fatigue.
Load Detection and Speed Adjustment: Detects the load on the drill motor and adjusts the feeding speed accordingly to maintain consistent performance.
Rebar Detection Function: Helps to avoid cutting through rebar, enhancing safety and protecting the core bit (functionality depends on specific conditions).
Versatile Mounting: Can be mounted on either the right or left side of the carriage block to accommodate various work settings.
Safety Shutoff: Automatically stops the drill when the core bit penetrates through the working material.

Need To Know

Operational Supervision: Always keep eyes on the machine during operations and never leave the machine running alone.
Emergency Preparedness: Always be positioned to stop the machine immediately if necessary.

Categories Core Drilling, Core Drills, Drill Stands Tag AFS-R

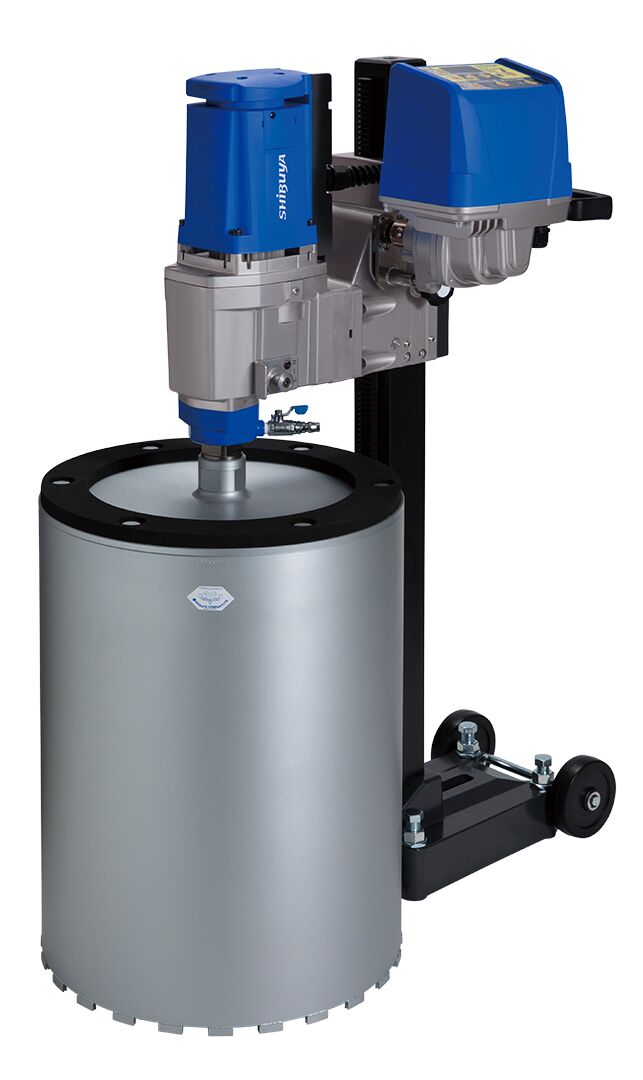

The AFS-R Automatic Feeding Unit revolutionizes core drilling by automating the feed of the drill motor, ensuring optimal performance and accuracy. It is equipped with advanced sensors to adjust the feeding speed based on the load of the drill motor and includes a rebar detection function to prevent cutting through reinforcement bars, ensuring smoother drilling and increased bit lifespan.

Specifications:

Rated Input: 40 W
Voltage: AC 100-120V, 220-240V, 50/60 Hz
Weight: 7.0 kg (15.4 lbs)
Dimensions: 196 (W) x 258 (L) x 268 (H) mm
Compatible Models: TS-252, TS-255, TS-402, TS-403, TS-405

Why Choose Cutting Edge Diamond Tools? Choosing the AFS-R Automatic Feeding Unit from Cutting Edge Diamond Tools means you are equipped with a tool that not only enhances your project’s efficiency but also ensures precision and safety. Our expertise in providing cutting-edge tools, coupled with comprehensive customer support and service, makes us the preferred provider for professionals in the industry.

Enhance your core drilling operations with the AFS-R Automatic Feeding Unit and experience a new level of automation and control. Trust Cutting Edge Diamond Tools to provide you with innovative solutions that propel your projects to success.
