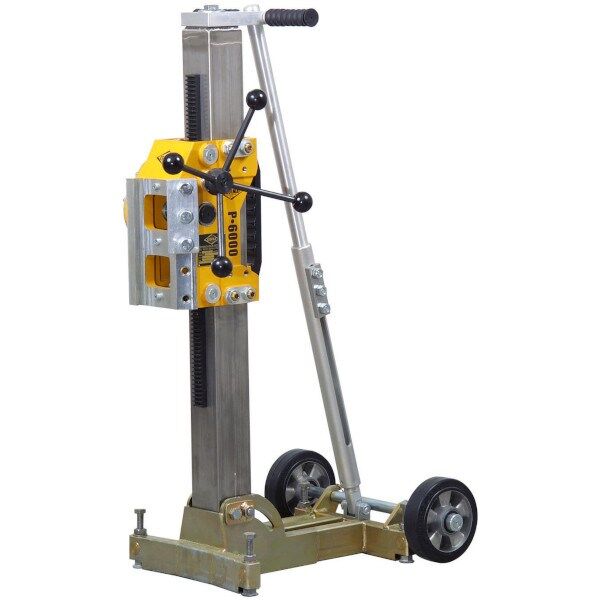

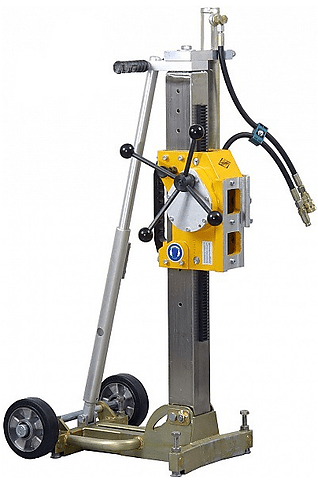

Cedima P-6000 Heavy Duty Diamond Core Drilling Stand

Key Features

Versatile Drilling Options: Supports drilling from 90° to 45°, with an auto feed option and capabilities for pipe drilling.
Robust Construction: Ensures long-lasting durability and stability in demanding environments.
No Vacuum Fixing: Designed for secure mounting without the need for vacuum fixing.
Compatibility: Compatible with various drill motors like Weka DK52, Weka SE 75, DR Bender/Golz BBM33 L Extra for varying maximum drill diameters.

Need To Know

Qualified Service Partner: As a recognized service partner, Cutting Edge Diamond Tools provides comprehensive support including servicing, repairs, and spare parts.
Warranty and Support: Each unit comes with full manufacturer’s warranty support, underpinned by our local expertise.
Training Available: Cutting Edge offers training sessions on the optimal use of all Core Drills to maximize performance and safety.

Categories Core Drilling, Core Drills, Drill Stands Tag P-6000

The Cedima P6000 Heavy Duty Drill Stand is designed for professional use, featuring a stainless steel drill column that supports a maximum drilling capacity of up to 800 mm when using an extender plate. With its impressive range of features and adjustable components, this drill stand is ideal for both standard and specialized core drilling applications.

Specifications:

Drill Column Dimensions: 80 x 80 mm
Drilling Stroke: 570 mm, extendable up to 1570 mm
Material: Stainless steel column, galvanized steel dowel foot
Carriage: Aluminium with integrated fine feed (1:4 ratio) and “dove tail” motor mounting plate
Hand Wheel: 4-armed, mountable on both sides for ease of operation
Guidance System: Heavy-duty ball bearings with brass contact surfaces
Foot Screws: Durable stainless steel in brass threaded inserts
Height: 995 mm
Width: 365 mm
Length: 435 mm
Weight: 28.5 Kg (without extension), 32 Kg (with extension)
Maximum Drill Diameter: 600 mm (standard), 800 mm (with extender plate)
Tilt Function: 90° to 45° drilling capability

Why Choose Cutting Edge Diamond Tools? Selecting the Cedima P6000 from Cutting Edge Diamond Tools means you’re investing in a top-tier product with guaranteed support and service. Our expertise in the construction and drilling industries ensures that we provide not only high-quality products but also comprehensive customer care and technical support. Whether you’re undertaking complex industrial projects or handling precise installations, the Cedima P6000 provides the reliability and performance you need.

Equip your projects with the Cedima P6000 Heavy Duty Drill Stand and experience enhanced efficiency and precision with every job. Trust Cutting Edge Diamond Tools to equip you with the best tools in the industry, ensuring your projects are completed with utmost professionalism and quality.
