Key Features
- Two Speed Motor: Provides flexibility and control over drilling speed, enhancing performance.
- Built-in Safety Features: Includes a Portable Residual Current Device (P.R.C.D.) for electric leakage protection and a built-in on/off switch with motor overload protection.

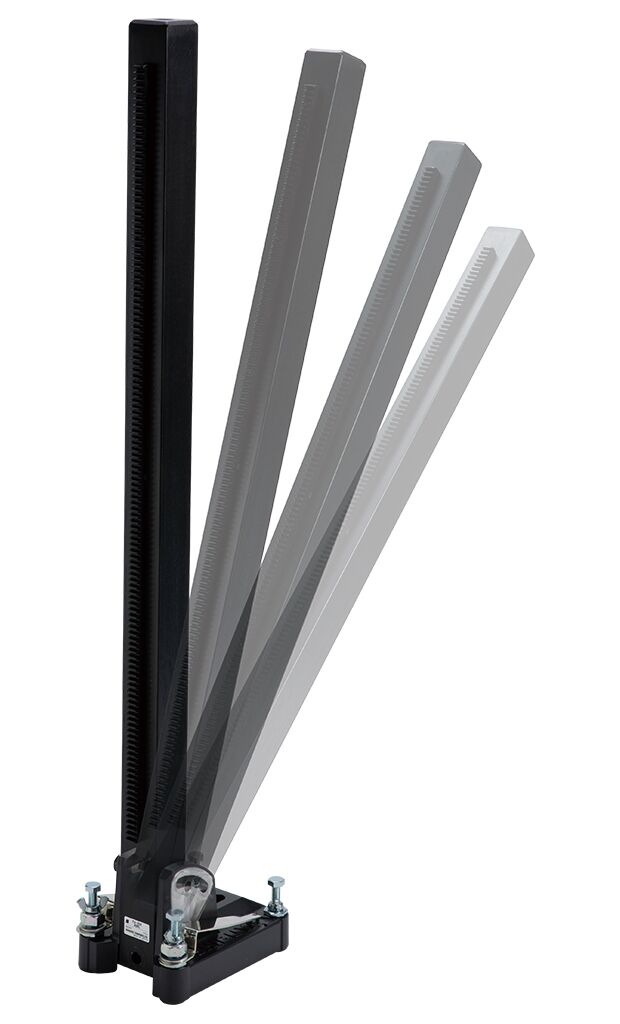

- Enhanced Mobility: Optional AB52 swivel base and 200mm extension column for increased reach and convenience.

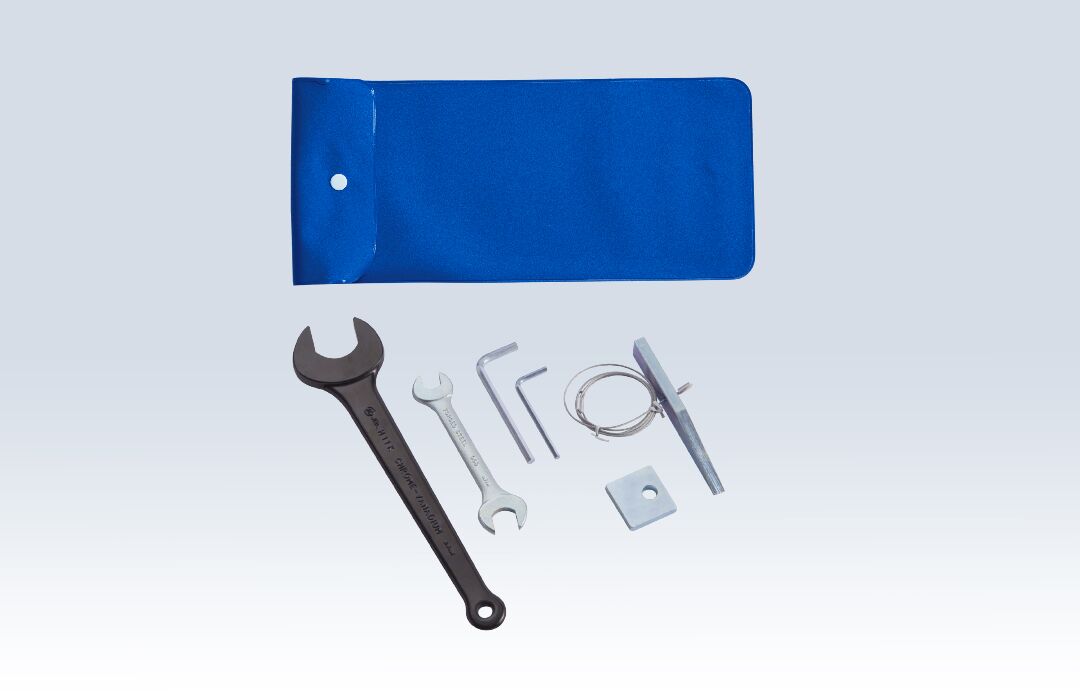

- Tool Kit: Comes with wrenches, allen keys, and core removal tools to facilitate setup and maintenance.
Need To Know
- Qualified Service Partner: As a recognized service partner, Cutting Edge Diamond Tools provides comprehensive support including servicing, repairs, and spare parts.
- Warranty and Support: Each unit comes with full manufacturer’s warranty support, underpinned by our local expertise.
- Training Available: Cutting Edge offers training sessions on the optimal use of all Core Drills to maximize performance and safety.

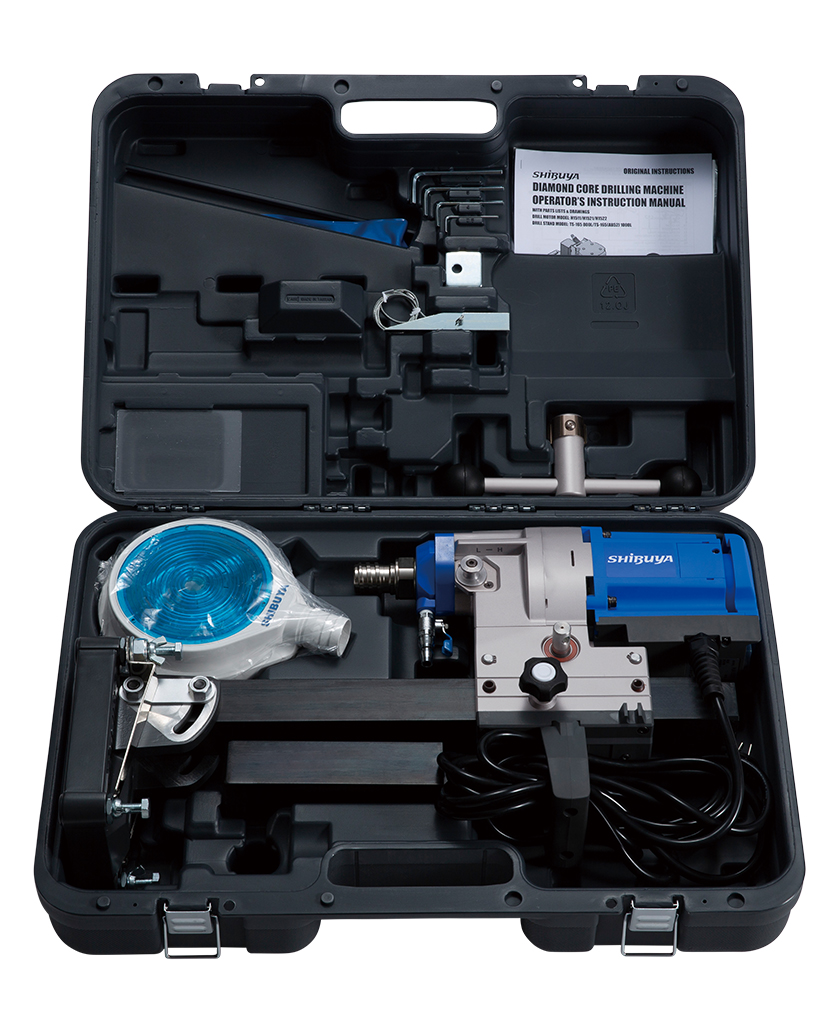

Shibuya Pixie Rig Drill & Stand Package (H1522 & TS-165)

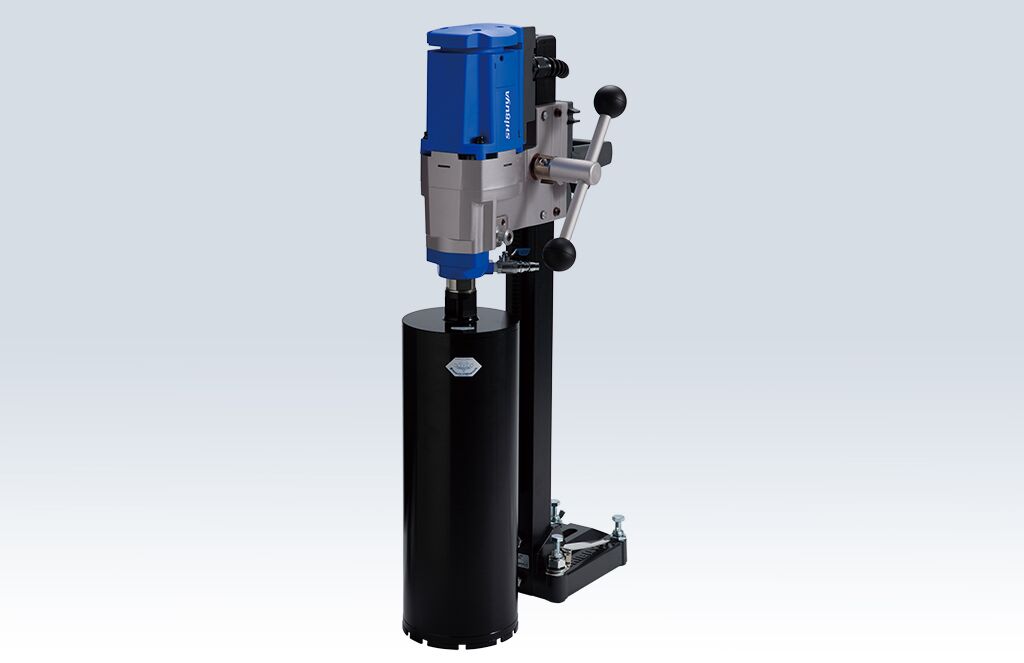

The Shibuya TS-165 Core Drill Rig is tailored for professional drilling applications. It features a robust design with a maximum bit capacity of 180 mm (7 inches), making it ideal for various drilling tasks. The rig is equipped with a multi-position water swivel inlet and can accommodate both right and left-hand feed handle positions, ensuring versatile and comfortable operation.
Specifications:
- Maximum Bit Capacity: 180 mm (7 inches)
- Motor Options: H1521 (Standard) / H1522 (High-rev for small diameters)
- Rated Input Power: 1,900 W (100V), 1,700 W (110-120V), 2,100 W (220-240V)
- Voltage: AC 100V, 110-120V, 220-240V, 50/60 Hz
- Speed Settings: 2
- Spindle Revolutions (No Load): Varies with voltage and motor option
- Spindle Thread: UNC 1-1/4″, A-Rod
- Weight: Varies with configuration
- Height: 803 mm (Normal), 1011 mm (AB52), 793 mm (Case Version)
- Base Size: 146 x 205 mm
- Available Stroke: 545 mm (Normal), 715 mm (AB52), 497/535 mm (Case Version)
Why Choose Cutting Edge Diamond Tools? Choosing the Shibuya TS-165 from Cutting Edge Diamond Tools ensures you not only receive a reliable and efficient core drilling rig but also comprehensive support from our expert team. Our partnership with Shibuya allows us to provide exceptional customer service, quick access to spare parts, and expert maintenance tips. We are committed to ensuring that our customers benefit from the latest advancements in drilling technology and receive the support necessary to succeed in their projects.
Invest in the Shibuya TS-165 Core Drill Rig from Cutting Edge Diamond Tools and experience the precision, durability, and reliability needed to tackle the most challenging drilling tasks efficiently.
