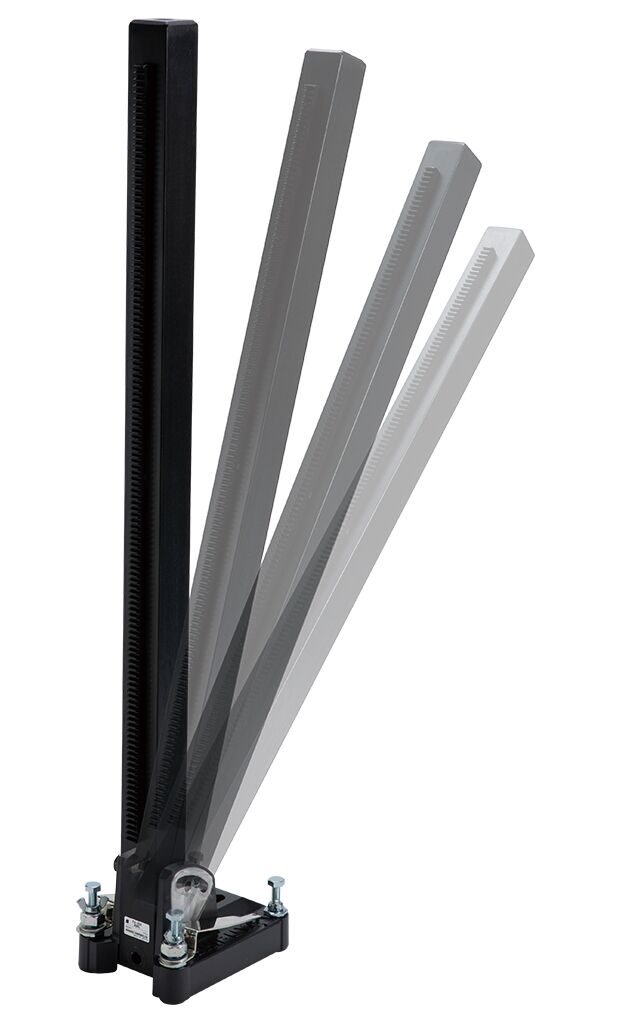

Shibuya Drill Rig & Stand Package (H2231 & TS-405)

Shibuya Drill Rig & Stand Package (H2231 & TS-405) - Image 3

Key Features

Built-in Safety: Features a built-in on/off switch with motor overload protection and a Portable Residual Current Device (P.R.C.D.) that automatically shuts off electricity in the event of electric leakage.
Convenient Design: Offers multi-position water swivel inlet and adaptable handle positions for comfortable operation.
Durable Build: Constructed with a robust frame and designed for long-term use in demanding conditions.

Need To Know

Qualified Service Partner: As a recognized service partner, Cutting Edge Diamond Tools provides comprehensive support including servicing, repairs, and spare parts.
Warranty and Support: Each unit comes with full manufacturer’s warranty support, underpinned by our local expertise.
Training Available: Cutting Edge offers training sessions on the optimal use of all Core Drills to maximize performance and safety.

Categories Core Drilling, Core Drills Tag H2231 & TS-405

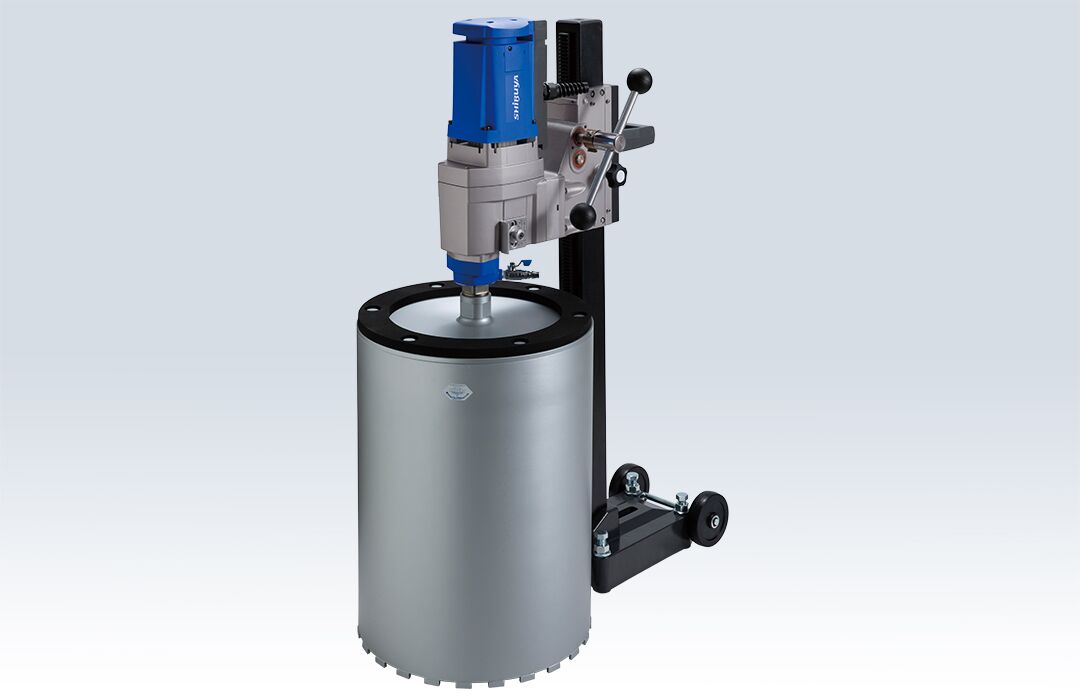

The Shibuya TS-405 and H2231 are one of the best displays engineering excellence, providing robust performance and versatility for a wide range of drilling jobs. This motor is ideal for intensive core drilling tasks requiring high accuracy and efficiency. It is equipped with features that ensure operator safety and machine durability, making it a top choice for professional environments.

Specifications:

Maximum Bit Capacity: 400 mm (16″) with 30 mm Spacer
Rated Input Power: 2,750 W (110 V), 3,450 W (110-120 and 220-240 V)
Voltage: AC 110 V, 110-120 V, 220-240 V, 50/60 Hz
Speed Settings: 3
Spindle Revolutions (No Load): 300/700/1400 rpm (110-120 V), 350/800/1600 rpm (220-240 V)
Spindle Revolutions (Rated Load): 230/550/1080 rpm (110-120 V), 200/500/950 rpm (220-240 V)
Spindle Thread: UNC 1-1/4″, A-Rod
Weight: 17.8 kg with carriage block

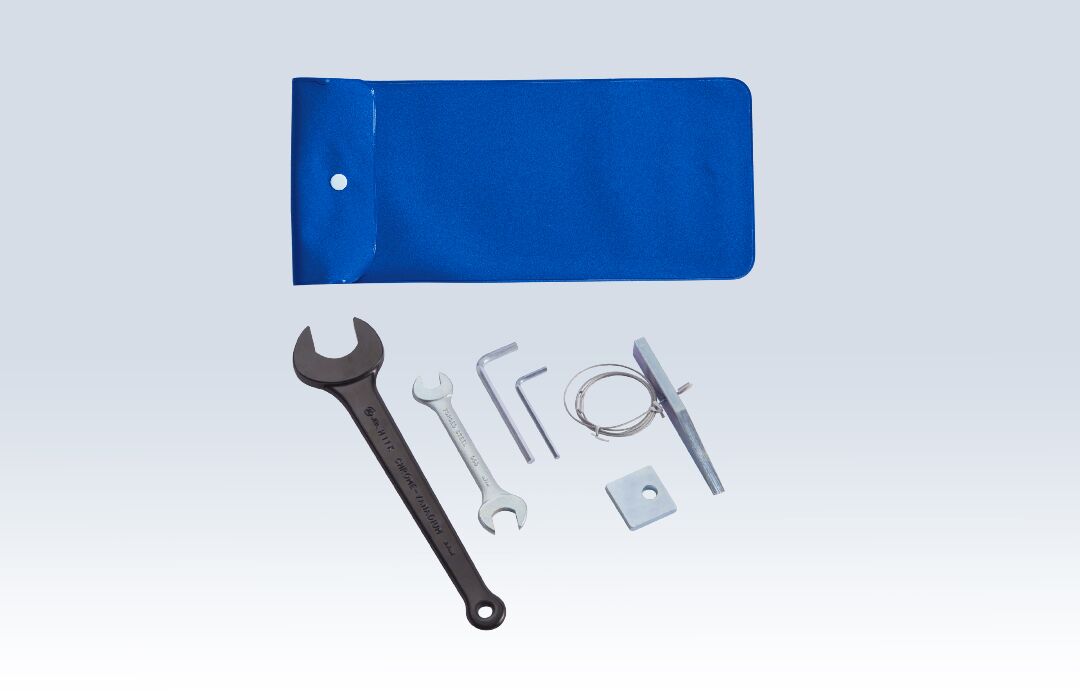

Tool Kit: Includes Allen keys, ratchet wrench, single-end spanner, nut driver, core removal wedge, and square washer

Why Choose Cutting Edge Diamond Tools? Selecting the Shibuya TS-405 & H2231 from Cutting Edge Diamond Tools means investing in a high-quality, reliable motor that will deliver superior performance. Our partnership with Shibuya ensures we provide not only top-tier products but also expert advice, maintenance services, and easy access to spare parts. Our commitment to excellence in customer service and product provision makes us the preferred choice for professionals looking for dependable core drilling solutions.

Invest in the Shibuya TS-405 &H2231 set for your core drilling needs and benefit from enhanced efficiency, safety, and performance. At Cutting Edge Diamond Tools, we equip you with the tools necessary to achieve precise results on every project.
