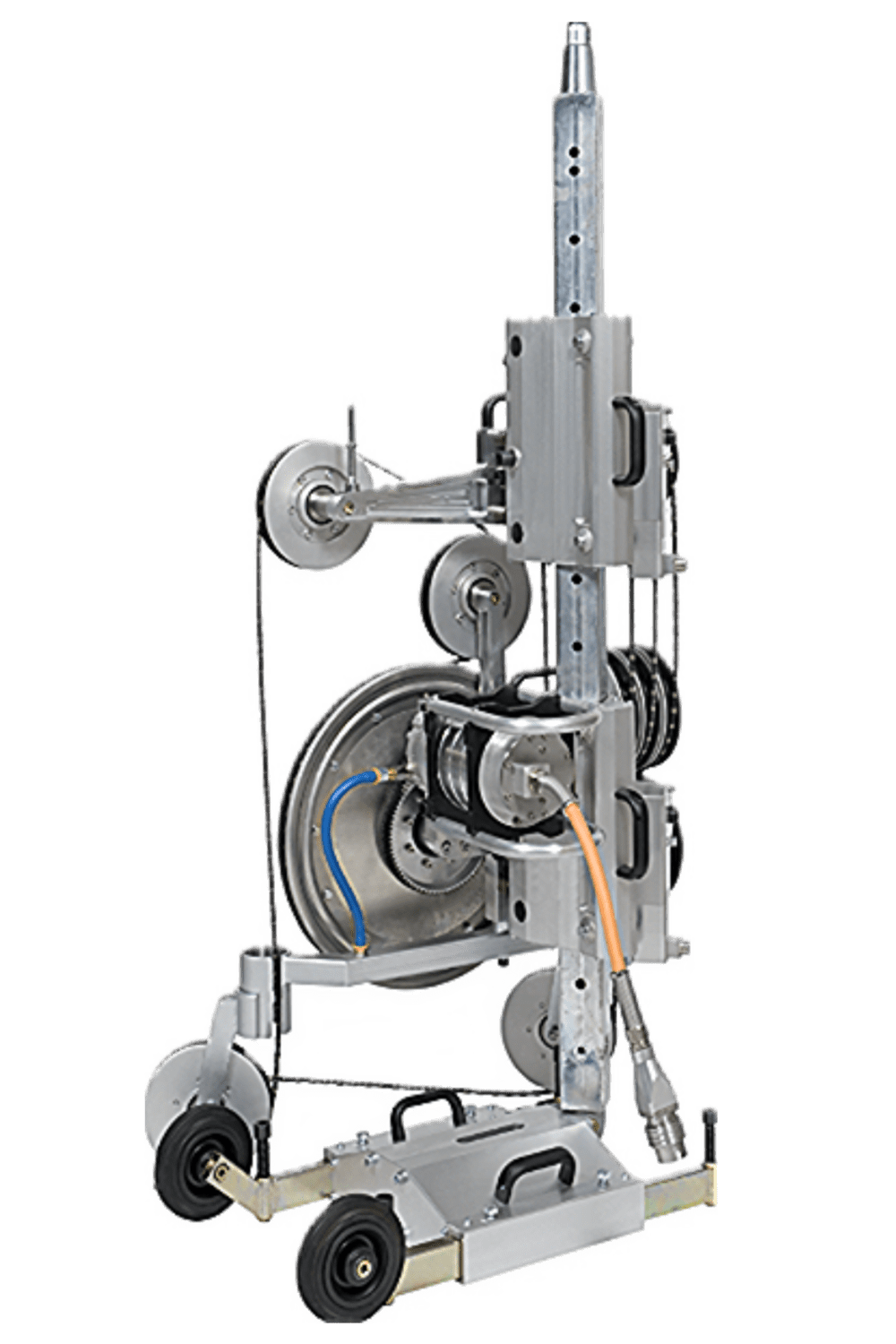

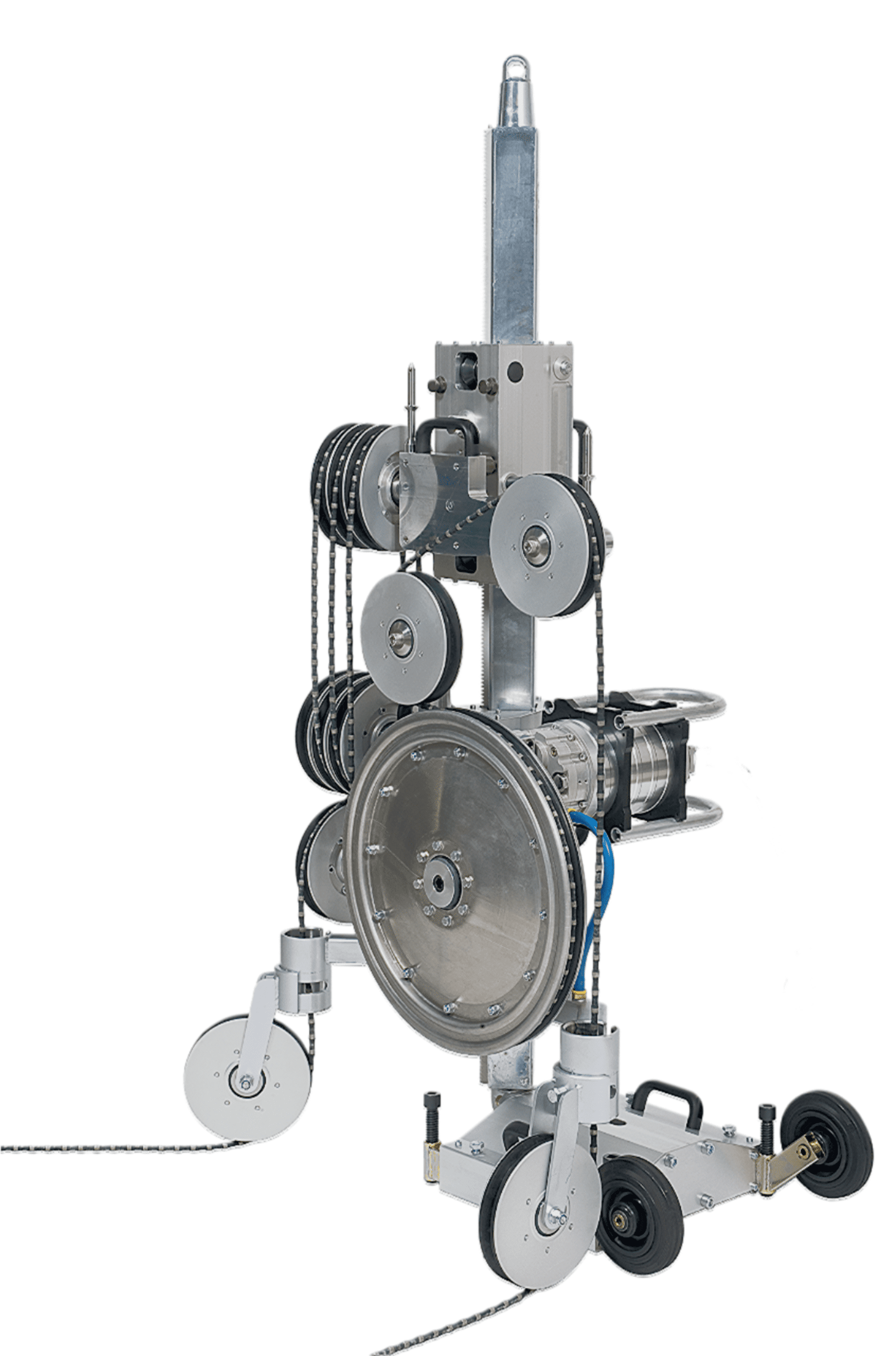

Pentruder 3P8

As the premier partner of Pentruder in the Southern Hemisphere, Cutting Edge Diamond Tools is proud to offer the Pentruder 3P8 HF Wire Saw, a testament to innovation in concrete cutting technology. Our collaboration with Pentruder ensures that Australian industries have access to the most advanced and efficient cutting solutions available on the market.

Product Specifications:

• Max Continuous Output Power: 22 kW (30hp)
• Compatible HF-Motors: 27, 22, 18 kW; 37, 30, 24 hp
• Slip Clutch: Yes
• Wire Diameter: 8 – 12 mm (5/16″ – 1/2″)
• Weight: All wire saw modules weigh less than 25 kg each
• Storage Capacity: Approximately 20 m; per 1m (40″) stroke of the carriage, 8m (26′) wire is stored
• Max Wire Speed: 22 m/s (4300 ft/min)
• Storage in Pulleys: Min. 6.5 m (21 ft)
• Lower Assembly Weight: 19.7 + 12.7 kg (43.4 + 27.9 lbs)
• Main Drive Pulley Weight: 13.9 kg (30.6 lbs)
• Upper Assembly Weight: 14.9 kg (32.8 lbs)
• Storage Pulley Weight: 2 kg (4.4 lbs)
• Telescoping Magazine Guard Weight: 10 kg (22 lbs)
• Telescoping Slack Side Guard Weight: 7 kg (15.4 lbs)
• Drive Pulley Guard Weight: 5 kg (11 lbs)
• Top Guard Weight: 10 kg (22 lbs)
• Main Drive Pulley Diameter: 500 mm (20″)
• Storage Pulleys Diameter: 198 mm (7.8″) O.D.
• Detachable HF-Motor: Yes
• Powerpacks: Pentpak 427i, Pentpak 222
• Voltage: 380-480V 50/60Hz, 200-230V 50/60Hz

Partnership Highlight: Cutting Edge Diamond Tools and Pentruder’s partnership brings global cutting-edge technology to Australia’s construction and demolition industries. This collaboration not only provides access to leading concrete cutting solutions but also ensures ongoing support and innovation tailored to local needs.
