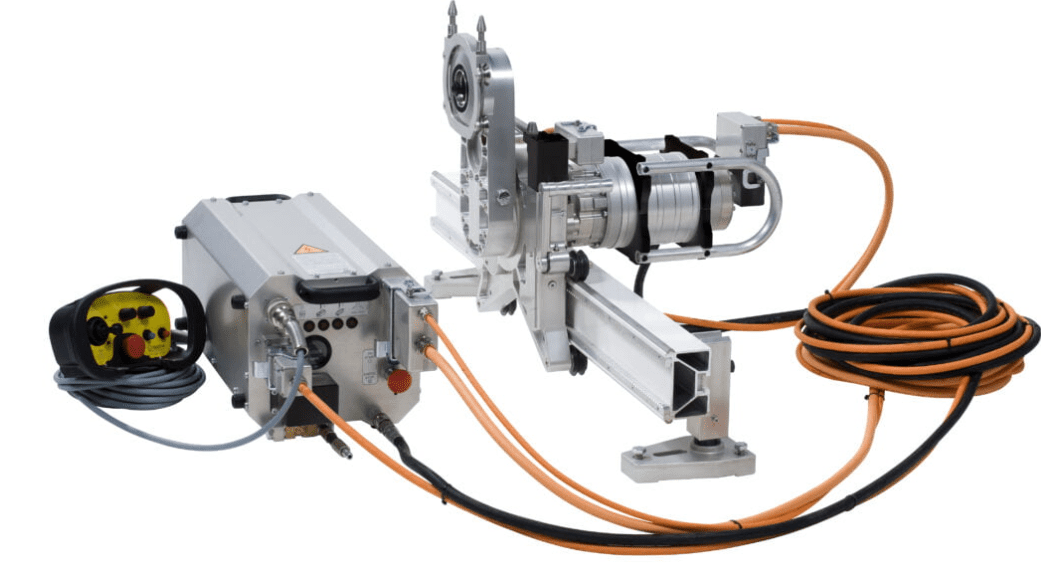

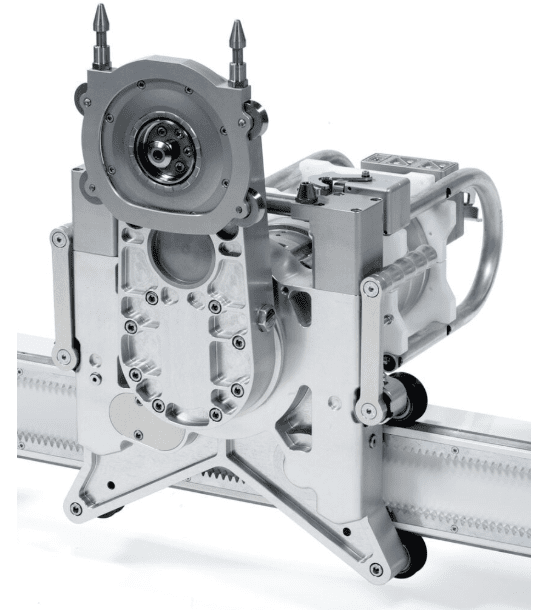

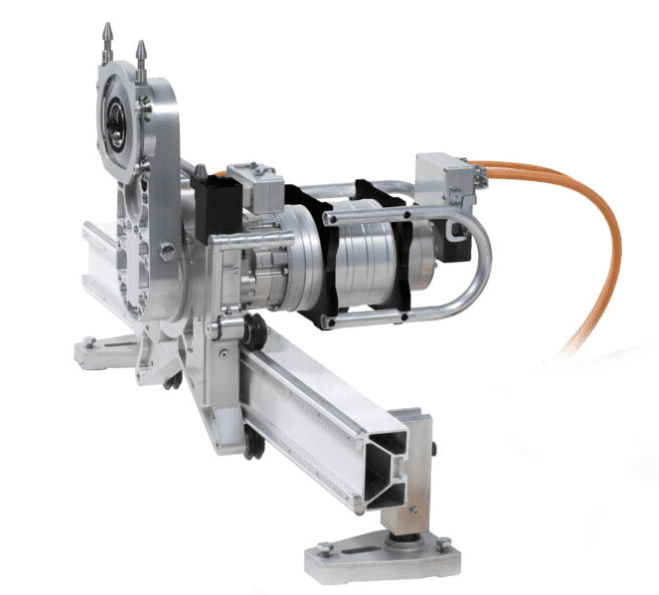

Pentruder 820iQ - Wall Saw

Key Features

Advanced Motor Technology: The 8-20IQ features a range of compatible high-frequency motors to suit various power needs, enhancing its versatility for different cutting conditions.
Deep Cutting Capability: With a maximum cutting depth of 915 mm and support for large diameter blades, this saw excels in heavy-duty tasks.
User-Friendly Operation: Equipped with a quick disconnect coupling system for easy blade changes, reducing downtime and boosting productivity.

Need To Know

Warranty and Support: Full manufacturer’s warranty backed by Cutting Edge Diamond Tools’ dedicated support team.
Training and Service: Access to expert training and rapid service response ensures your operations run smoothly with minimal interruptions.

Categories Sawing Machinery, Wall Saws Tag Pentruder 8-20iQ

In collaboration with Pentruder, Cutting Edge Diamond Tools proudly offers the cutting-edge Pentruder 8-20IQ Wall Saw to the Australian market. As the largest distributor of Pentruder products in the Southern Hemisphere, we ensure that our clients have access to the most advanced concrete cutting tools available today.

Product Specifications:

Max Blade Diameter: 2000 mm (79″)
Weight of Saw Head: 25.5 kg (56 lbs)
RPM Range: Multiple gears (1: 310 – 460 RPM, 2: 450 – 660 RPM, 3: 565 – 830 RPM, 4: 710 – 1045 RPM)
Max Output Torque: 480 Nm
Drive Motor: 22 kW (30 hp)
Max Cutting Depth: 915 mm (36″)
Max Start Blade Diameter: 1000 mm (40″)
Motor Type: Detachable
Compatible HF-Motors: 27, 22, 18, 15 kW and 37, 30, 24, 20 hp
Weight of Motor: 18 kg (40 lbs)
Blade Rotation Direction: One way
Quick Disconnect Coupling for Blade: Yes, HF
Blade Flanges (Full), Ø Arbor Size:
- Ø 60 mm
- Ø 60 – 108 mm (4-1/4″), 6x M10
- Ø 60 – 110 mm, 6x M10
- Ø 60 – 130 mm, 6x M8
Blade Flanges (Flush), Ø Arbor – PCD:
- Ø 1″ – 4-1/4″, 6x M10
- Ø 1-3/8″ – 4-1/4″, 6x M10
Blade Guards: GS: swing type, full; GSF: swing type, flush; GSE: swing type, full; GP: parallel, full; GPF: parallel, flush; GPE: parallel, full
Sound Pressure Level: 95 dB(A)
Powerpack: Pentpak 4-27i, Pentpak 222
Voltage: 380-480V 50/60Hz

Partnership Highlight: Our strategic partnership with Pentruder allows Cutting Edge Diamond Tools to provide not just cutting-edge machinery but a commitment to continuous innovation and support. This collaboration helps drive the concrete cutting industry forward, ensuring our clients benefit from the latest advancements and comprehensive support.
